GAMA BS-2000

GAMA BS-2000

Controllers or process indicators with universal input and very easy to program. They are an all-terrain of an impressive robustness.
RS-485 Modbus RTU.
2 or 3 relays
Analog output
24 Vdc auxiliary power supply.

GAMA LS-3000

GAMA LS-3000

One more step in this series of controllers, Similar to the BS-2000 range, but only on the outside. Inside it has function blocks that allow more advanced functionality. Arithmetic blocks, STR (internal memories), etc

GAMA DS-4200-DS4500

GAMA DS-4200-DS4500

Equipos de doble entrada en versiones normalizadas, con funciones avanzadas.
Doble entrada y doble salida.

GAMA MS-5000 - HS 7000

MS-5200/5300

HS-7200/7300

For complex controls, cascade control loops, ratio or models with specific functions, this range of 2 or 3 inputs should be considered.

DAS-8000

ACQUISITION OF DATA WITH LOCAL DISPLAY AND SOFTWARE

A perfect module with 8 analog inputs with local display and expandable according to your needs. Supervise and register through PC with software without license cost.

MAC 3500 MODULES

MAC 3520 -3540 -3580

MAC 3560 - 3606-3564

Modules in Rail DIN format, without display, for a modular acquisition and without external manipulations. Connect and go. This is Plug & Play, Software registration without cost per license.

There are simplified versions. MAC 3000

SOFTWARE DESIN

PROASIS DCS-WIN

SOFT CONF XS-WIN

All equipment in the desin range (BS-LS-DS-MS-HS-MAC- and DAS) can be registered and monitored using the Proasis DCS WIN software.
For advanced processes, there is also the PLUS version

SONDAS ISTA-M

TEMP. AMBIENT

Models of transmitters and probes of room temperature. Several option

ISTH-485 TRANSMITTERS

TEMP. AND HUMIDITY

Models of humidity and temperature transmitters for non-aggressive environments. With or without RS-485

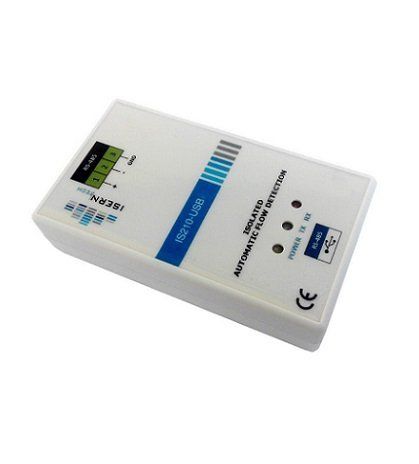

CONVERTER IS-210

RS-485 / USB CONVERTER

Link the Modbus RTU equipment network with the computer with this simple interface.

ISB-RE 82

ADVANCED CONTROLLER

1 loop control equipment with the option of ramp programmer.

ISB-N24

BASIC INDICATOR

Basic indicator of 1 input for temperature or Idc, Vdc, Iac, Vac.
96x48x64 mm.
Does not include exits.
4 digits of 20 mm height

ISB-RE72

BASIC CONTROLLER

Control equipment of 1 loop with 3 outputs
PID, ON / OFF, step by step, heat-cold (or bimodal). Additional function of ramp programmer.
2 display.
Timer function.
48 x 48x93 mm.
Various options according to types of configuration.

ISB-RE70

BASIC CONTROLLER

1 loop control equipment with the option of ramp programmer.

MIM Flowmeter

COMPACT FLOWMETER

Compact flowmeter with color display.
Display adjustable and configurable by optical buttons. Little size.
Dosing function.
Analog output
Ranges up to 100l / min

Thermal flow meter

KEC

Thermal mass flowmeter of stainless steel insertion.
Output 4-20 mA and pulses.
Alim to 24 Vdc.
Pmax 100 bar.
Different measuring ranges, up to 2840 Nm3 / h.

HD-2108

TEMPERATURE LAPTOP

Portable measurement equipment for temperature probes with thermocouple sensor. It admits several types of thermocouples.

HD-2307

TEMPERATURE LAPTOP

Pt-100 probe measurement equipment.
Ranges of -200 / 650º C.
Measurement of maximum value, minimum, average value. IP67 protection level.

Z -8TC-1 converter

ACQUISITION TP- MODBUS

Module for the acquisition of 8 configurable thermocouple inputs.
DIN Rail
24 Vdc power supply
RS-485

CPU SENSINEXT

Configure los módulos radio

Add, suppress re-number or indicate the transmission frequency from the CPU keyboard.
