Composting Area

COMPOSTING AREA

SUPERVISION OF THE PROCESS THROUGH TEMPERATURE CONTROL
Continuous or punctual readings of the temperature of the composting piles

TEMPERATURE IN THE COMPOSTING PROCESS

The measurement of the temperature in the composting process is basic to determine the quality of the compost. Therefore, we offer different technical solutions both in the measurement of the temperature of the different batteries, as well as in the treatment of information. Each product that achieves success is the result of hard work in which different aspects intervene, temperature throughout the cycle, numbers of flips, moisture measurements and records of all those variables in electronic format.

RADIO SOLUTIONS

If we want to have the information in continuous of the temperatures of the probes or batteries, we offer the transmitters via radio SM-100 of Sensinext.
Power supply: 2 x 3 V (CR123A batteries)
Autonomy: from 100 m to 1000 m (consult according to orography).
Transmission intervals configurable from the CPU.
Monitor the temperatures on a computer and treat the information as it interests you.
COMPOST PROBES GAMMA PDF
Si no requiere de una información en contínuo y solo desea ver de forma puntual el comportamiento de las pilas en su evolución natural, el modelo ISSR-MOY-DL dispone de un datalogger con su software de registro. Puede descargar a fichero excel los datos mediante cable al puerto USB de su ordenador.
Detalle: Observe su tamaño. Poco peso y máxima fiabilidad
Solutions with function dataloggers and display in the same probe. We mechanized by adding the equipment to the probe. We have 1 and 4 thermocouple inputs.
It is supplied with software.
Waterproof case with transparent lid for visual inspection.

CONTINUOUS DISPLAY:
If you want to monitor the values of the probes on a PC, check our solutions via radio.

WE HELP MANAGE WASTE IN COMPOSTING

                                                                        NUESTRA EXPERIENCIA A SU SERVICIO

TRANSMISSION VIA RADIO - SENSINEXT

If you are thinking about improving your plant, consider these points:
1-Installation cost, minimum.
2-Long range through the use of radio repeaters.
3-Intuitive software. We have several software levels according to your needs.
3-Option of reception equipment in the CPU with Modbus TCP / IP. Monitor your installation remotely.
COMPOTEST SX-2: Solución software para la monitorización del proceso. Enlace la CPU con su ordenador via RS485,
Comparta su información con otros ordenadores e incluso use la nube para compartir la información.  Solucion iOT.
Suministramos la solución completa.Nosotros ofrecemos el sistema ordenador-licencias.
Basic characteristics of the CPU:
Link up to 32 units with the same CPU.
Radio technology with military-type frequency hopping algorithms.
Compatible with standard acquisition systems.
CPU power consumption 100 mW
Supports up to 4 repeaters.
Basic characteristics of issuers:
Model: SM-PT100
Radio technology with military-type frequency hopping algorithms.
Transmission frequency or configurable intervals.
They are powered by 2 x 3 V batteries (type CR123A).
Led indication of coverage and power.
Configurable via the CPU or software via Modbus RTU.
Standard outdoor range (with line of sight): 1000 m

Nuevas tendencias: Compostaje comunitario

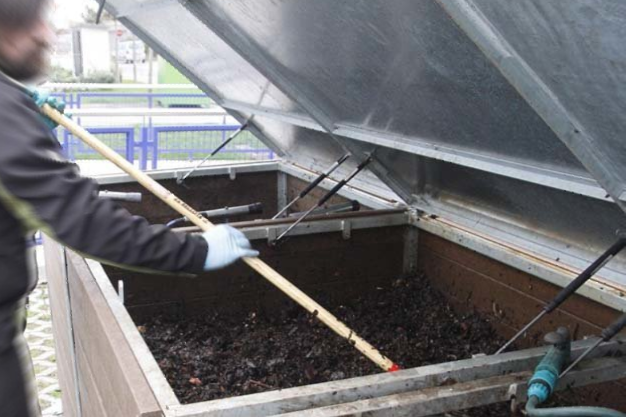

Composting in community facilities in Pontevedra. Source: Diario de Arousa, July 2018
Actual trends:
The improvement of waste management by the administrations is an upward trend. Working together, in the case of community composting, the collection costs and their transfer to treatment centers are reduced.
New developments.
We have design capacity and constantly improve or innovate new products.
MONITOR YOUR PLANT:
Remotely, you can check the status of your plant.
Compostaje comunitario:
El mejor residuo es el que no se produce.
No obstante, ya que no podemos eliminarlos, si podemos aprovechar al máximo sus posibilidades de retorno al ciclo ambiental.
Si se hace de forma comunitaria, el beneficio también es para la comunidad.
Costs
Our temperature probes and thermometers are a basic element in every composting process.
Check the different options.
You will be surprised at our value for money.
COMPOSTING PLANTS - JOINT WORK BETWEEN CLIENT AND SUPPLIER,

Thermocouple or Pt-100 probes for temperature measurement in composting piles

01

SENSORS WITH 1 SENSOR

Models with 1 sensor on the tip of the INOX sheath. (A-316)
Direct output via connector according to reader.

02

MULTIPOINT PROBES

Several reading points if you want to have a stratified study of the stack.
Available in Pt100 or thermocouple.

03

PROBES WITH OUTPUT 4-20

Temperature measurement with transmitter in the head of the probe, with 4-20 mA type output to connect with any PLC type electronic equipment or process indicator.

04

SONDAS VIA RADIO

If you want to reduce installation costs, do not hesitate to consider this option.
Reach in open field (with line of sight, orientation) of 1000 m and excellent autonomy. Sensinext equipment.

WE DESIGN THE TEMPERATURE PROBES ACCORDING TO YOUR NEEDS

TEMPERATURE SUPERVISION AND READING

COMPOTEST SX-RE: TRANSMISSION AND RECORDING OF TEMPERATURES IN A COMPUTER

We specialize in offering solutions in various levels or features.
We have the basic with the COMPOTEST SX software for reading only on PC through the CPU module SMC868
We have the COMPOTEST SX-V2.
With it you have information of:
- Readings of the probes
- State of the batteries - Information on operating time, alarms etc.
- State of communication
- Average, maximum and minimum values
- Graphics and representation of synoptics.
- Remote or network connectivity.
- Alarm status notifications with e-mail
We supply the complete system.

READING WITH PORTABLE EQUIPMENT

If our idea is to read manually on site, we can use portable reading devices. We offer the range of delta ohm because they are robust and in an environment where hands are usually occupied, better equipment than if they fall, do not alter their useful life.

DAVIS VANTAGE PRO 2 WEATHER STATION INTEGRABLE IN THE SOFTWARE

01

Temperature and humidity

02

Anemometer

03

Wind direction

04

Pluviometry

Save time

Sondas normalizadas y fabricadas bajo demanda con entrega en cuestión de pocos días, con información del seguimiento de su pedido.

Si no disponemos de su sonda, se la diseñamos para fabricarla bajo sus especificaciones.

Bajo demanda, ofrecemos las sondas con certificado de calibración.

Let's help the environment

Composting allows us to take advantage of the organic waste generated by human activity, helping to maintain the quality of our soils. Currently the administration is promoting the concept of community composting. Objective, reduce overall costs in town halls and organizations, managers, etc., with the optimization of waste management.
